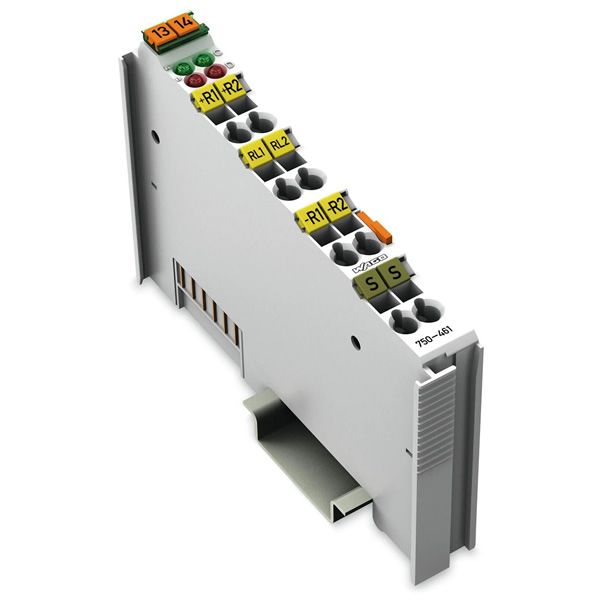

WAGO 750-461 2-channel analog input module. This analog input module directly connects to Pt100/RTD resistance sensors. Two- or three-wire sensors can be connected. The module automatically linearizes the entire temperature range. A sensor error (short circuit, line break or measurement range overflow) is indicated by a red LED. A green LED indicates readiness for operation and error-free communication with the coupler. The shield directly connects to the DIN-rail.
● DIN 35 rail type of mounting
● CAGE CLAMP® Connection technology
● 500V System/supply isolation
● 0.1°C Resolution (over entire range)
● 320ms (per channel) Conversion time
● IP20 Protection rating
● -200 to +850°C Temperature range
Applications
Automation & Process Control, Sensing & Instrumentation
WAGO 750/753 I/O System
Boasting more than 500 I/O modules, programmable controllers and fieldbus couplers, WAGO’s I/O System offers all the functions required for your automation needs – and for every fieldbus. The remote I/O System is the decentralized peripheral for automation technology. International certifications such as ATEX, UL508 and GL, as well as several additional marine approvals, mean that the WAGO I/O System can be used worldwide for virtually any industry. WAGO’s 753 Series Pluggable Connectors and high-density modules minimize both hardware and system requirements.
