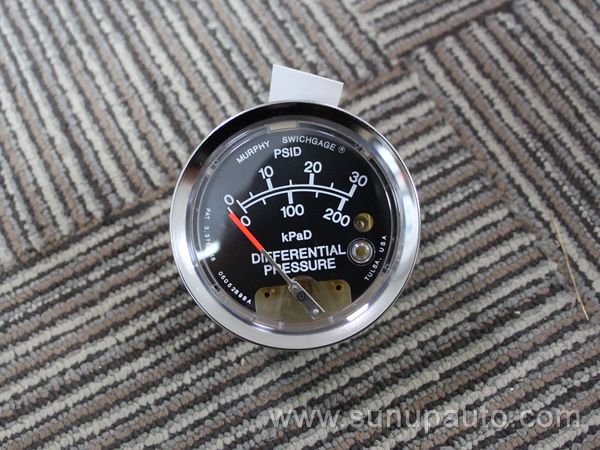

The A25DPG-30 Differential Pressure Swichgage® is a 2.5" (64 mm) dual-scale dial, diaphragm-actuated differential pressure-indicating gage. THIS GAUGE DOES NOT HAVE CONTACTS. The A25DPG-30, with a pressure range of 0-30 psi, is intended to monitor and indicate oil, fuel or water filter restriction and can reduce the risk of dangerously high pressure which may rupture the filter, resulting in contaminants entering the system. This filter restriction Swichgage® will let you know when to change your filter and maintain peak efficiency.

The gage mechanism is enclosed in a polycarbonate, break-resistant case and lens. A polished stainless steel bezel and O-ring seals help protect this rugged instrument from the external environment. Accuracy and protection from moderate overpressure is assured by a unique, unitized diaphragm chamber. A built-in pulsation dampener helps eliminate pointer flutter and is removable for cleaning. Inside the A25DPG-30, the tempered nickel silver gage pointer acts as a pressure indicator.

FEATURES:

2-1/2 inch/64 mm dial

Monitors Engine Oil and Fuel Filters

Indicating Gage

Signals Coolant Loss or Aeration On Engine Water Pump

Polycarbonate Case

Polycarbonate, Break-Resistant Lens

Polished Stainless Steel Bezel

Gage ONLY without Contacts/Switch

PRODUCT SPECIFICATIONS:

Part No.: A25DPG-30

Range: 0-30 psi (0-207 kP)a [0-2.0 bar]

Maximum Static Pressure: 300 (2.1) [20]

Maximum Differential Pressure: 60 (414) [4.0]

Contact Setting: 20 (138) [1.0]

Dial: White on black, dual scale; U.S.A. standard scale is psi/kPa

Case: Polycarbonate

Bezel: Polished stainless steel

Lens: Polycarbonate, high-impact

Temperature Range: Ambient: -40°F (-40°C) thru 150°F (66°C); Process: -40°F (-40°C) thru 250°F (121°C)

Process Connection: 1/8-27 NPTM brass

Sensing Element: Beryllium copper diaphragm

Gage Accuracy: ±3% maximum across scale

Unit Weight: 11 oz. (0.29 kg)

Unit Dimensions: 4-3/4 x 4-3/4 x 2-3/4 in. (121 x 121 x 70 mm)
