AFV10D-S41251 General Specifications: Models AFV10S, AFV10D for Field Control Unit, Duplexed Control Unit (for Vnet/IP and FIO, 19-inch Rack Mountable Type).

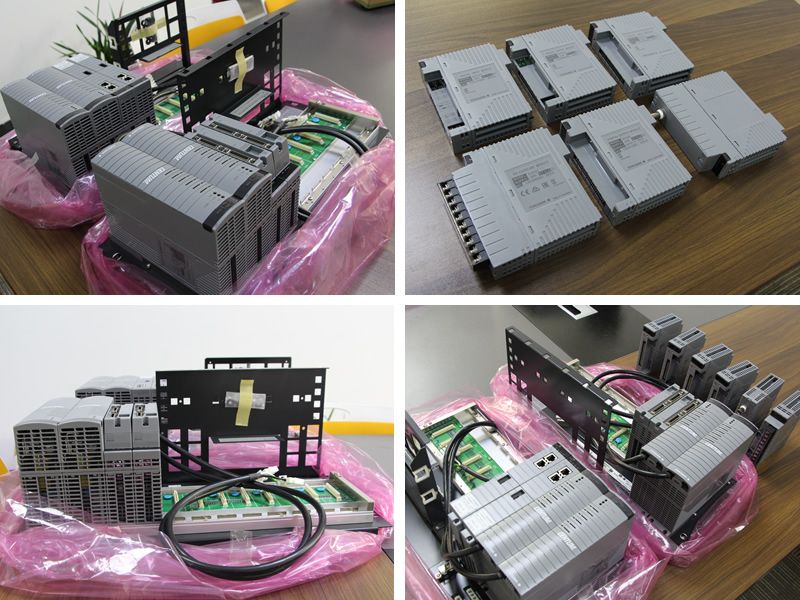

AFV10D Duplexed Field Control Unit

AFV10D-S41251     AFV10D-S41251/ATDOC

AFV10D-S41261     AFV10D-S41261/ATDOC

AFV10D-S412E1     AFV10D-S412E1/ATDOC

AFV10D-S412F1     AFV10D-S412F1/ATDOC

AFV10D-S41151     AFV10D-S41151/ATDOC

AFV10D-S41161     AFV10D-S41161/ATDOC

AFV10D-S411E1     AFV10D-S411E1/ATDOC

AFV10D-S411F1     AFV10D-S411F1/ATDOC

AFV10D-S41451     AFV10D-S41451/ATDOC

AFV10D-S41461     AFV10D-S41461/ATDOC

AFV10D-S414E1     AFV10D-S414E1/ATDOC

AFV10D-S414F1     AFV10D-S414F1/ATDOC

Processor

VR5432 (133 MHz)

Main Memory Capacity

32 Mbyte

Memory Protection During Power Failure

Battery

Battery Back-up for Main Memory: Max. 72 hours

Battery Recharge Time: Min. 48 hours

FCU Status Contact Output

2 terminals (NC, C)

Contact Points open during FCU failure

Contact Rating: 30 V DC, max. 0.3 A

Communication Interface

Vnet/IP Interface: Dual-redundant

Module configuration

Power Supply Module (PW481 or PW482 or PW484):

Two modules in case of a dual-redundant configuration.

Processor Module (CP451): Two modules in case of a dual-redundant configuration.

I/O Modules(*1): Max. 8

*1: Non-standard components.

Mounting

19-inch Rack Mounting:

Rack mount (8 x M5 screws)

Insulation bush (accessory)

Connection

Power Supply: M4 screw terminal connection

Grounding: M4 screw terminal connection

Contact Output: M4 screw terminal connection

Network: Connect UTP cable (CAT5e or better) to Layer 2 switch.

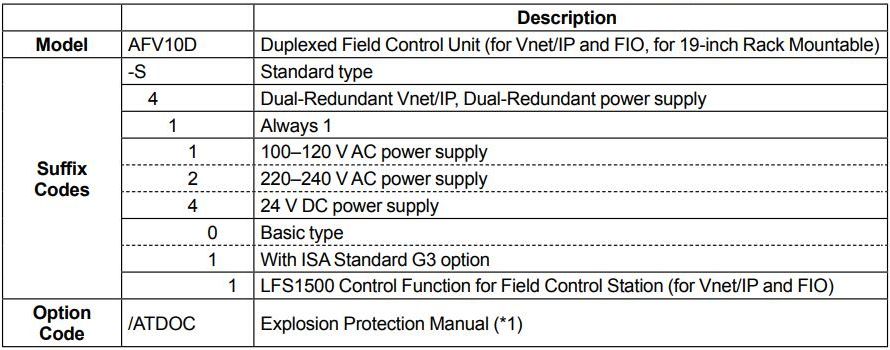

MODELS AND SUFFIX CODES

Yokogawa Duplexed Field Control Unit AFV10D

*1: Select the option code "/ATDOC" to follow the ATEX Directive for use in potentially explosive atmospheres.
