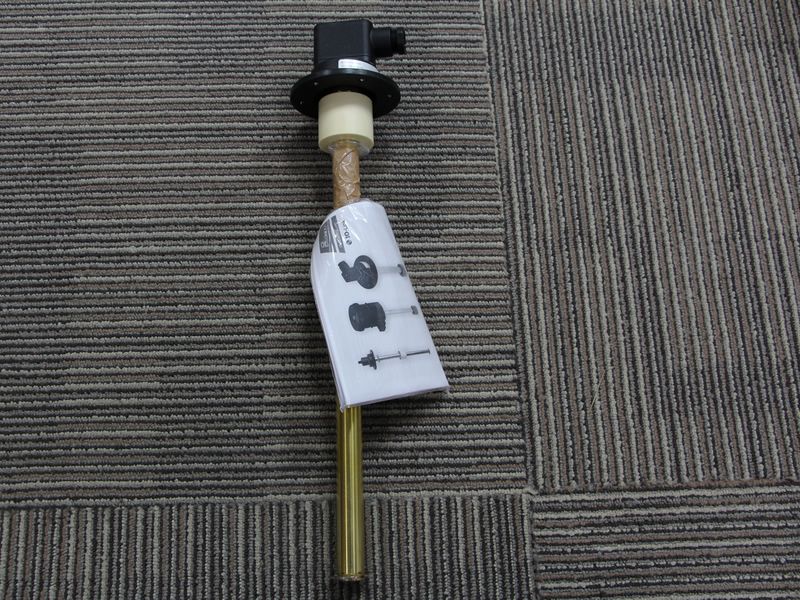

Bühler Technologies Nivotemp NT 61-MS-S6/370-2K: Level and temperature switch NT 61

Features:

· Connecting flange as per DIN 24557 T2

· Various plug options

· Proven and tested highly dynamic float system

· Suitable for up to 230 V AC/DC

· Up to 4 switching outputs for liquid level or 2 switching outputs for liquid level plus Pt100 or analog output for temperature

· Temperature monitoring as switch, Pt100 or 4-20 mA output

· NT 61-HT (used for HFC+HFA oils) for temperatures up to 150 °C

· Immersion tube length up to 1.5 m

Nivotemp NT 61/NT 61D

In hydraulics and lubrication technology the liquid level of oil tanks must be monitored. In the process, modern factory automation requires the provision of compatible signals. Despite central system control, visualising the current level on the actual tanks is often desired.

To minimise production costs and the space required on tanks, it makes sense to use one monitoring device for both the liquid level and oil temperature for example. The Nivotemp series meets virtually all requirements arising in this area of application.

The NT 61 model provides up to four adjustable bistable switching contacts for level monitoring. Combined with temperature monitoring, two level and two different temperature signal options are available. An LED display for temperature monitoring with up to four programmable switching outputs is optional or alternatively, one continuously analogue output and one switching output (can also be programmed as a frequency output).
