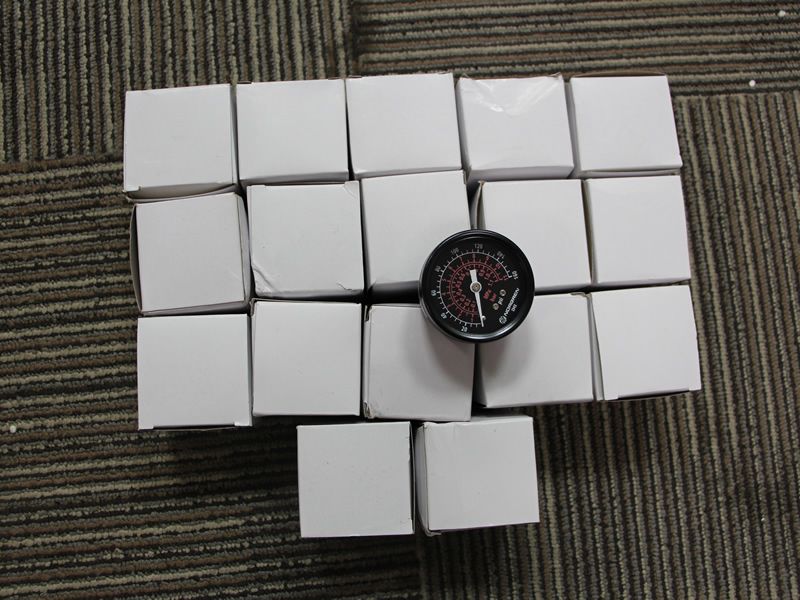

Norgren pressure gauge 18-015-209, 1/4" NPT thread, 0 to 160 psi range, center back connection.

Technical features

Monitor pressures in compressed air systems for optimum efficiency

> Triple calibrated scale indicates pressure in psi, bar, and Mpa

> Back or bottom connection

> Panel mount, stainless steel, and Underwriters Laboratories, Inc. listed gauges available

> Compliant with RoHS 2 Directive 2011/65/EU materials requirements

> Medium - Compressed air, oil and gases or liquids which do not corrode copper alloys

> Wide pressure, temperature and range

Technical Details

Port size: 1/4" NPT

Mounting: Center Back

Nominal diameter: 50 mm

Port connections: 1/4" NPT

Operating temperature: -20 ... 65 °C

Pressure range: 0 ... 11 bar

Pressure range: 0 ... 1.1 MPa

Pressure range: 0 ... 160 psi

usstock: 521

Special Features: Backside Connecting Thread

Fluid:

Compressed air and inert gasses Maximum pressure: 100% of full scale on gauge

Accuracy:

2% of full scale at midrange

3% of full scale at other ranges

Connector:

Standard steel and plastic bodies have brass connector

Optional stainless steel body has stainless steel connector
