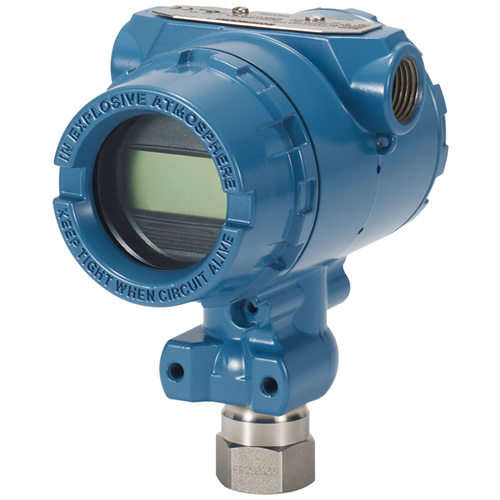

The Rosemount 2088 Gauge and Absolute Pressure Transmitter provides superior measurement capability that can be used for almost any line pressure or tank level applications. The 2088 pressure transmitter is available in either gauge or absolute pressure in pressure ranges to 4,000 psi (275 bar). It utilizes a solid-state, polysilicon pressure sensor with a choice of either 316L or Hastelloy C-276 isolating diaphragms. The low oil fill of this design has very little temperature effect and outstanding accuracy. Protocols available include 4–20 mA HART® and 1–5 Vdc HART Low Power.
The Rosemount 2088 Gauge and Absolute Pressure Transmitter is suitable for almost any location in which value is a priority. Its patented piezoresisitive silicon sensor, dual-compartment housing, and compact, lightweight design adds up to a reliable, convenient, an economical installation wherever it is applied. It is designed with reliability, long-term performance, and maintainability in mind.

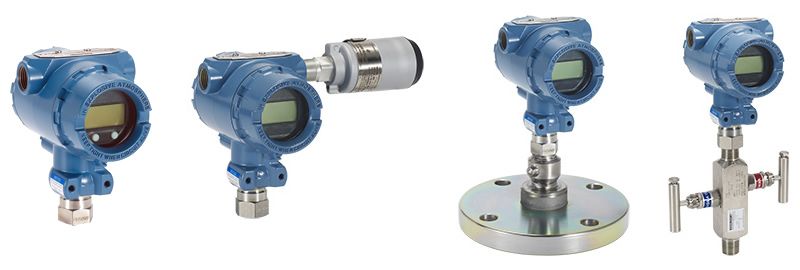

The Rosemount 2088 Gauge and Absolute Pressure Transmitter is available with a wide range of options to provide solutions for virtually any application.

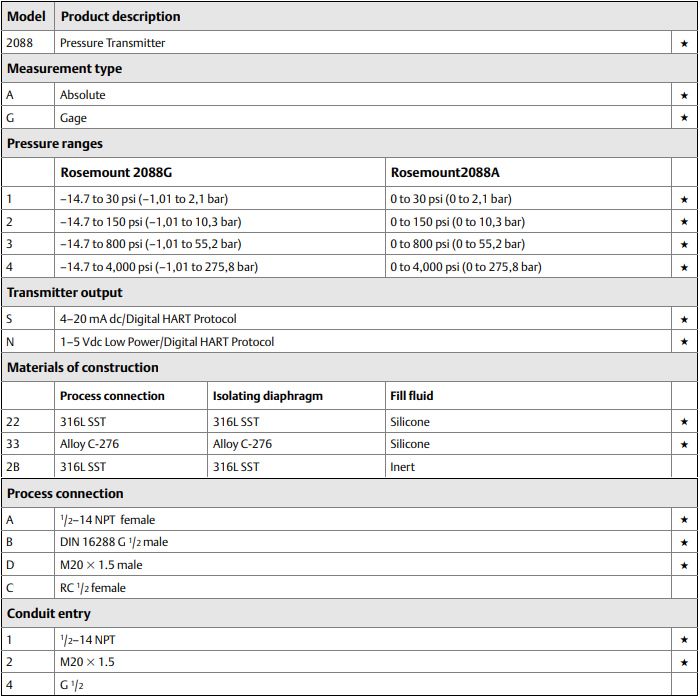

Rosemount 2088 Pressure Transmitter Ordering Information
If you need more Emerson Rosemount 2088 pressure transmitter, please click the "Need a Quote" button to fill in your quotation. We will reply you within 24 hours. Thank you!
Rosemount 2088G1S22A1C4P8DODWQ15HR7 Gage Pressure Transmitter
