We made MC2-IS as a practical and compact intrinsically safe calibrator that can be used in potentially explosive hazardous areas, such as offshore platforms, oil refineries, chemical and petrochemical plants. Beamex MC2-IS is no longer in production. Recommended replacement is Beamex MC6-Ex.

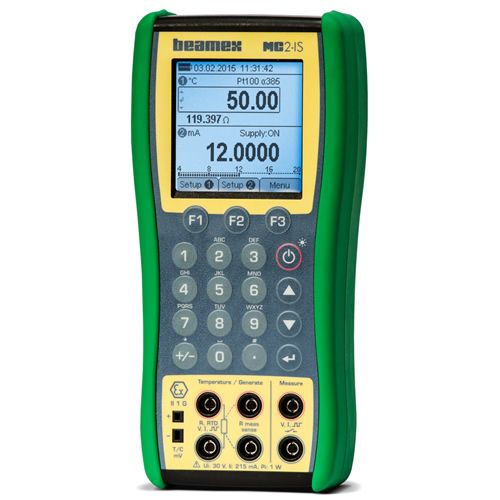

Beamex MC2-IS intrinsically safe calibrator
Features
Compact and user-friendly
Compact-sized, lightweight portable calibrator with large graphical display, multilingual interface and full numerical keyboard. Calibration is fast and simple.
Safe and robust field calibrator
The ATEX and IECEx certified MC2-IS is robust and made for tough use with impact protectors and membrane keyboard.
Certificates:
• ATEX: Ex II 1 G Ex ia IIC T4 Ga (Ta = -10 … +50 °C) (Ta = +14 … +122 °F)
• IECEx: Ex ia IIC T4 Ga (Ta = -10 … +50 °C) (Ta = +14 … +122 °F)
Wide configuration possibilities
The MC2-IS provides a number of configuration possibilities with connection to almost 20 available Beamex external pressure modules (IS).
Accuracy guaranteed
The MC2-IS is delivered with a traceable, accredited calibration certificate.
Functionality
Internal pressure module (barometric only)
Connection for external pressure modules
Loop supply
Current measurement (with internal and external supply)
Voltage measurement
Frequency measurement
Pulse counting
Switch sensing
Current generation
Voltage generation
Frequency generation
Pulse generation
mV measurement / simulation
Resistance measurement / simulation
RTD measurement / simulation
TC measurement / simulation
