MTL TP32-T Surge Protectors. Protects transmitters and smart transmitters from induced surges and transients on Fieldbus cabling.
The MTL TP32-T surge protection device is specifically designed to protect process transmitters and devices on Fieldbus systems. The terminated TP32-T has the same protection circuit as the standard product, but also includes a Foundation fieldbus™ termination circuit. This unique combination eliminates the need to purchase and install additional termination circuitry for the FF segment. The TP32-T provides excellent transient protection control and terminates the bus segment in one simple-to-install package. The termination circuit is designed to the requirements described in ANSI/ISA 50.02-2.
MTL TP32-T surge protection Features
● TP32-T includes a terminator for fieldbus in addition to surge protection
● Easy and direct mounting — screws into spare conduit entry on the transmitter
● Parallel connection ensures ‘transparent’ operation — zero voltage-drop across device
● ATEX approved, Certified FISCO Terminator

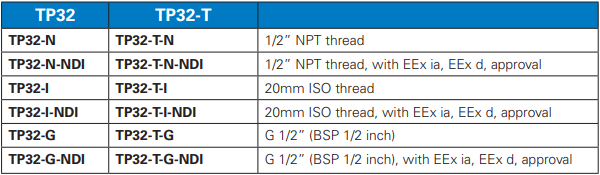

ORDERING INFORMATION

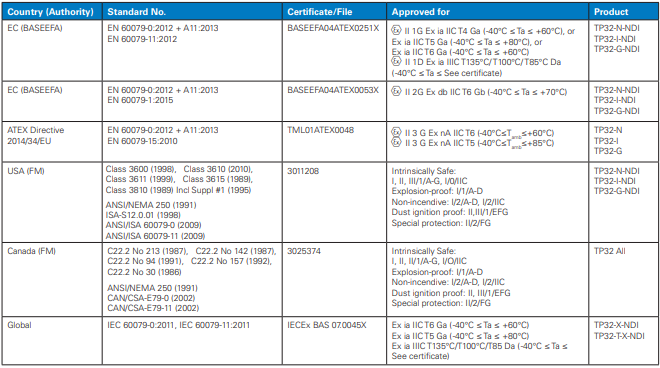

APPROVALS
