Siemens 6SL3211-1PC31-8UL0 SINAMICS G120 POWER MODULE PM240-2 Push Through, UNFILTERED WITH BUILT IN BRAKING CHOPPER 3AC200-240V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 45KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 55kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 754x384x358 (HXWXD), FSF PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 SP6.

Model: 6SL3211-1PC31-8UL0

Categories: SINAMICS Converters
Brand: Siemens




Siemens SINAMICS frequency converter
Siemens 6SL3211-1PC31-8UL0 SINAMICS G120 PM240‑2 Power Module

Siemens 6SL32111PC318UL0 SINAMICS G120 PM240‑2 Power Module

Siemens SINAMICS G120 standard converters

The SINAMICS G120 frequency converter is designed to provide precise and cost-effective speed/torque control of three-phase motors. With different device versions (frame sizes FSA to FSG) in a power range from 0.37 kW to 250 kW, it is suitable for a wide variety of drive solutions.

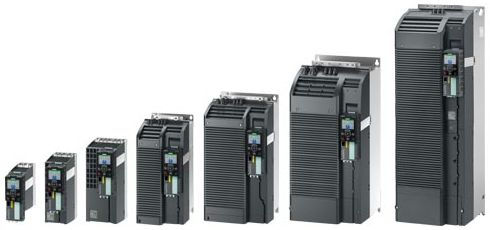

Siemens SINAMICS G120 Power Modules

PM240‑2 Power Modules – 0.55 kW to 250 kW (0.75 hp to 400 hp), IP20 degree of protection, frame sizes FSA to FSG (with Control Unit and Operator Panel).

The PM240‑2 Power Modules are based on a new hardware platform. This permits an increase in power density as well as the application of innovative cooling concepts (push-through technology) with especially high requirements in terms of control cabinet cooling.

Our products are 100% New & Original, in stock, low price promotion.
If you can't find a suitable product model or require additional information, please contact us.
Click here to see more products →

Siemens 6SL3211-1PC31-8UL0 SINAMICS G120 PM240‑2 Power Module
