Rosemount 248HAI1N0NSF6 temperature transmitter, Rosemount 248H is a complete head-mount temperature assembly for any Single Point measurement application.

The Rosemount 248H Temperature Transmitter is designed to meet common Single Point measurement application requirements. This transmitter with HART® protocol can easily be ordered with a variety of sensors (RTDs and thermocouples) and thermowells. The Rosemount 248H is provided in a head mount configuration suitable for installation in a wide variety of connection heads and housings. A PC-programmable interface is available, providing an easy-to-use configuration method from any PC.

Rosemount 248 Head Mount Temperature Transmitter

The Rosemount 248 has a standard transmitter design that provides flexible and reliable performance in process environments.

Transmitter features include:

● HART/4–20 mA Communication Protocol

● DIN B style head mount and rail mount transmitter types

● Accuracy: 0.20°C (0.36°F) or 0.1% of span

● Input 2, 3, 4 wire RTDs, thermocouple, millivolt, ohm

● Operating temp: -40 to 185°F (-40 to 85°C)

● Input/output isolation tested to 500 Vac rms

● Less than 0.5 seconds update time

● 32 seconds maximum. 5 seconds default damping

● Custom Alarm and Saturation Levels

● Sanitary Connection Heads available

● Three-Point Calibration Certificate

● Assemble to Sensor options

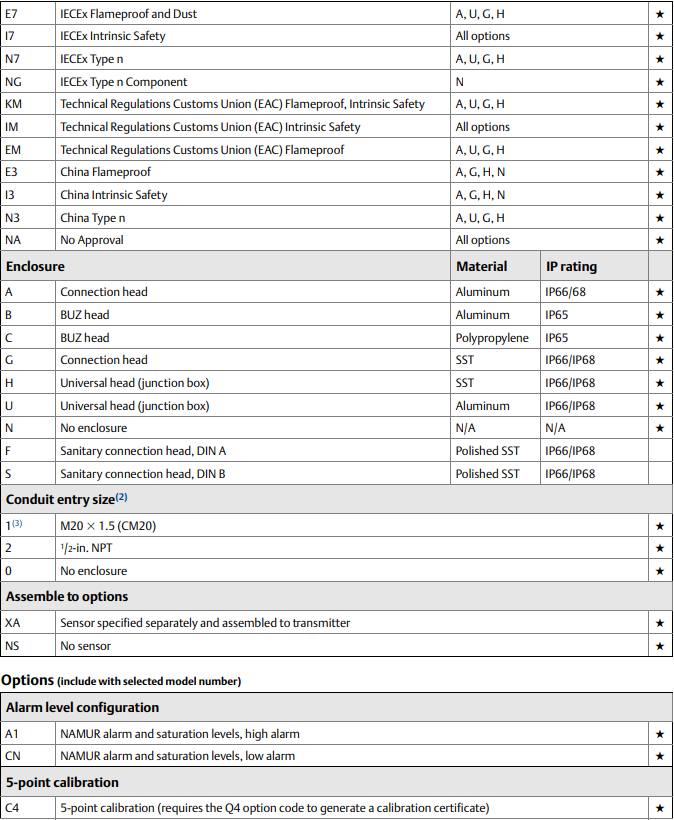

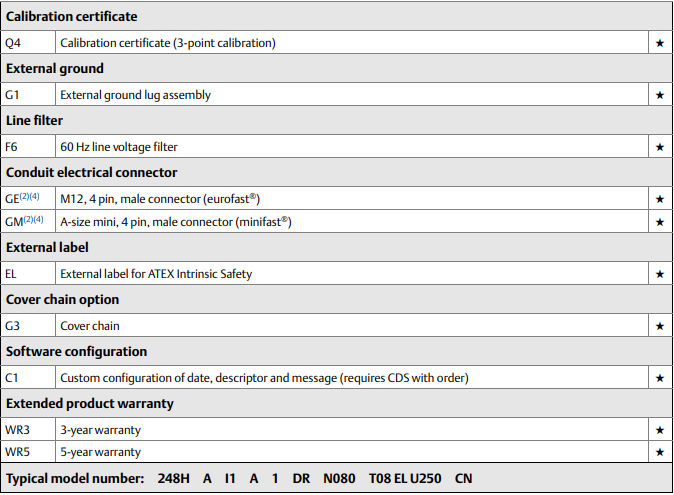

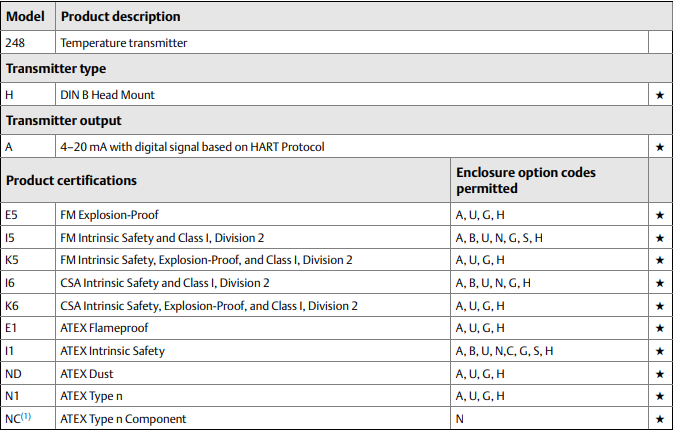

Rosemount 248 Head Mount Temperature Transmitter models:

248HANAN0NS

248HANAN0NSWR3

248HANAN0NSWR5

248HANAN0NSC1

248HANAN0NSC1WR3

248HANAN0NSC1WR5

248HANAN0NSG3

......
