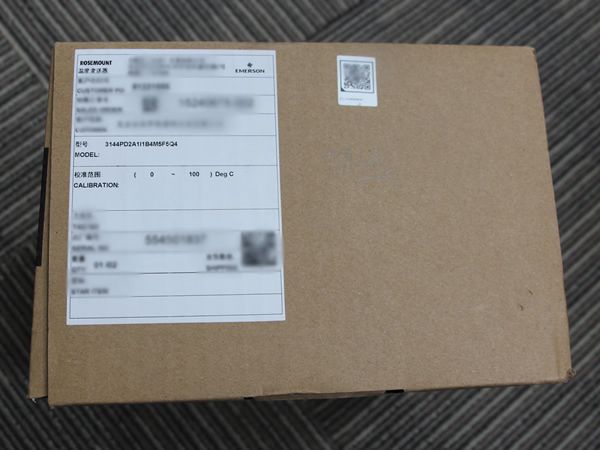

Rosemount 3144PD2A1I1B4M5F5Q4 temperature transmitter, Rosemount 3144P advanced temperature transmitter with superior accuracy, stability, and reliability for critical control and safety applications.

The Rosemount 3144P temperature transmitter is available with either 4-20 mA/HART or a completely digital FOUNDATION fieldbus protocol. It has the capability to accept either single-sensor or dual-sensor inputs. This dual sensor input capability allows the transmitter to accept simultaneous input from two independent sensors, enabling measurement of differential temperatures, averaging temperature or redundant temperature measurement.

The Rosemount 3144P temperature transmitter can be configured for a variety of sensor inputs: RTD, thermocouple, millivolt, or ohm. The HART version of the Rosemount 3144P temperature transmitter is approved for use in Safety Instrumented Systems. Local indication of temperature measurement and diagnosits provides immediate and accurate verification of process conditions. The Rosemount 3144P temperature transmitter is capable of single-sensor or dual-sensor input. This also allows for configuration of differential or average temperature measurements.

Features

● 3 analog inputs and 1 input selector

● Single or dual sensor input

● ±0.18°F for Pt100 RTD

● 2-, 3- & 4-wire RTDs, thermocouple, mV & ohm inputs

● HART or FOUNDATION fieldbus output

● 9.0 to 32VDC, 11mA max supply voltage

● Sensor drift alarm

● Dual-compartment housing

● Isolates electronics & terminal compartments

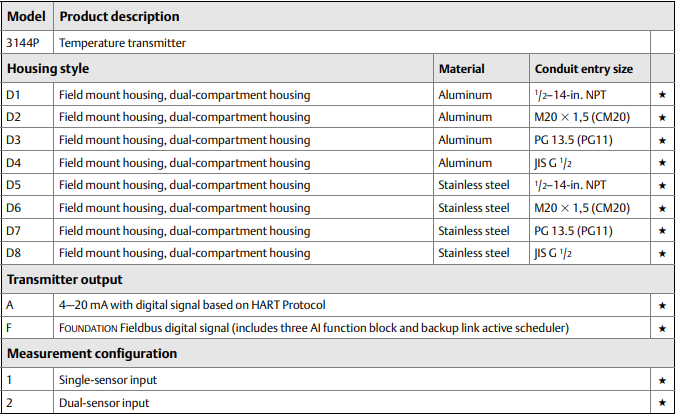

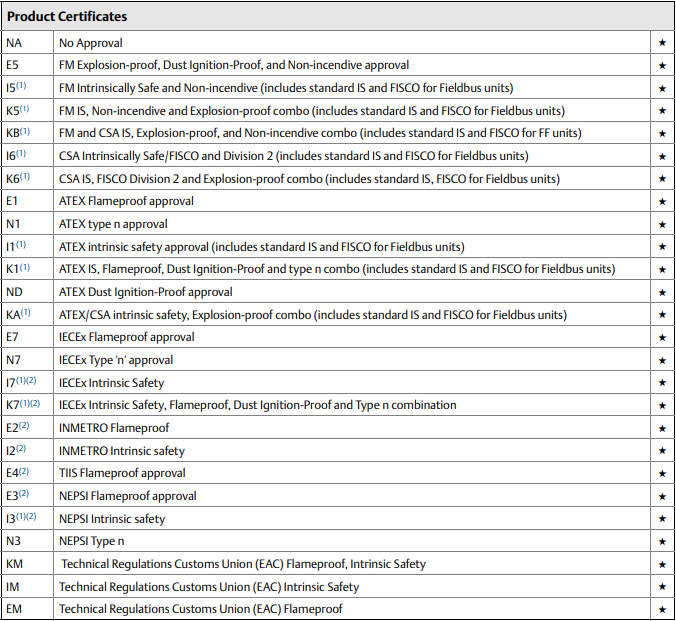

Rosemount 3144P Temperature Transmitter Ordering Information

Rosemount 3144P models:

3144PD1A1NA

3144PD1A1NAXA

3144PD1A1NAHR7

3144PD1A1NAHR7XA

3144PD1A1NAGE

3144PD1A1NAGEXA

......
