Balluff BTL7-E500-M0075-K-NEX-SR32 Magnetostrictive sensor for explosive areas - BTL31H7. Magnetostrictive linear position sensor Generation 7.

BTL7 -K-NEX- Series - Analog current

For use in the ex zones 0 and 1, Balluff offers pressure-encapsulated magnetostrictive linear position sensors in various rod designs and with different performance profiles. Depending on the application, you receive from us variants for areas that are threatened by gas or by dust. Linear position sensors that withstand possible explosion hazards are also available for Zone 2.

Key features

Interface: Analog, current

Measuring length: 25...5500 mm

Repeat accuracy: ± 10 µm

Linearity deviation: nnnn = 0050…0500: ± 50 µm, nnnn = 0501…5500: ± 0.01% FS

Operating voltage Ub: 10...30 VDC

Ambient temperature: -40...60 °C

Mechanical configuration: Fastening 18h6 fit

Housing material: Stainless steel (1.4305)

Protection degree: l = S: IP67 with connector, l = K: IP68

Approval/Conformity:

CE CSA IECEx EAC WEEE

Ex category

ATEX: 3G (EPL Gc)

ATEX: 2D (EPL Db)

IECEx: EPL Gc

IECEx: EPL Db

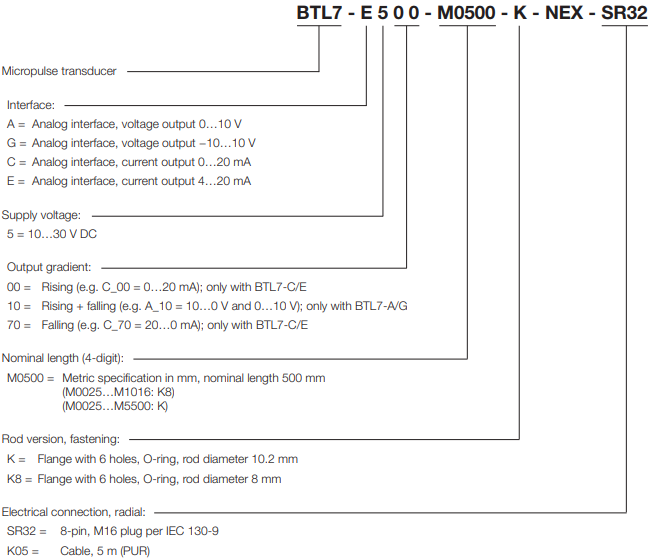

Type code breakdown

BTL7 -K-NEX- Series - Analog current Magnetostrictive sensors for explosive areas

BTL7 -K-NEX- Series - Analog current Magnetostrictive sensors for explosive areas
