ABB 266HSHQSBA7/LS/TB is a high overload gauge pressure transmitter with a maximum working pressure up to 105 MPa, 15225 psi suitable for measuring liquid, gas or steam pressure in a pipe or on an open tank.  Communication options now include Modbus®, along with 4-20mA HART, low-power 1-5V HART, Wireless HART, Profibus, and Foundation Fieldbus.

This transmitter features in-field replaceable electronics module that thanks to the auto-configuration functionality dramatically improves plant productivity. Its intuitive plug-and-play display with easy setup procedure really helps users by saving time and lowering maintenance and inventory costs.

266HSH features WirelessHART communication protocol allowing a shorter installation times by eliminating complex wired infrastructures, and lower overall implementation costs of process measurement.

266HSH battery life is about 10 years at 32 sec. update rates, delivering a very cost effective and reliable solution to monitor your process assets.

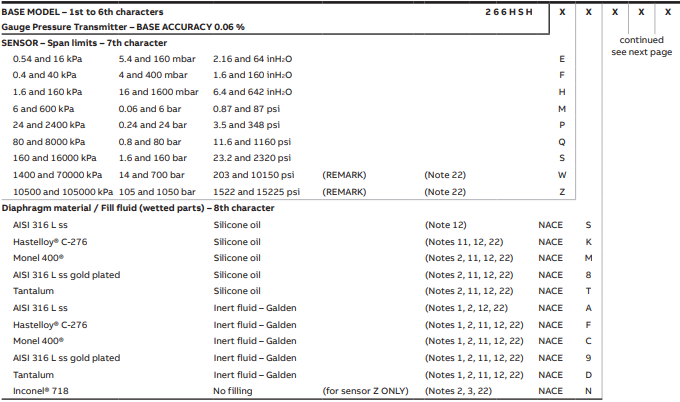

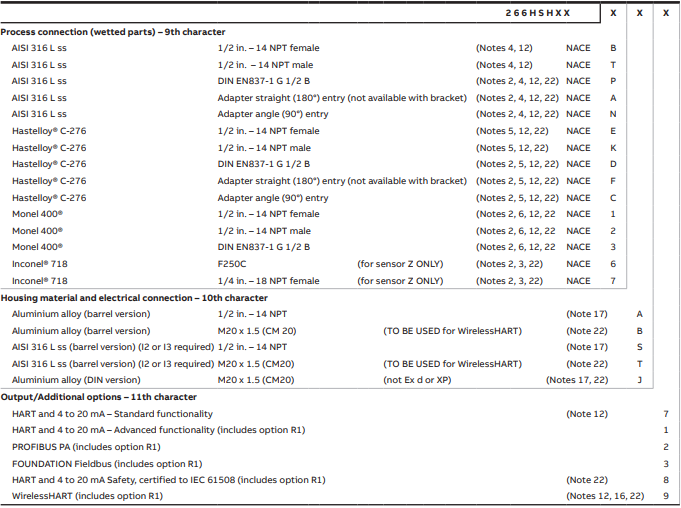

Basic ordering information for model 266HSH Gauge Pressure Transmitter
