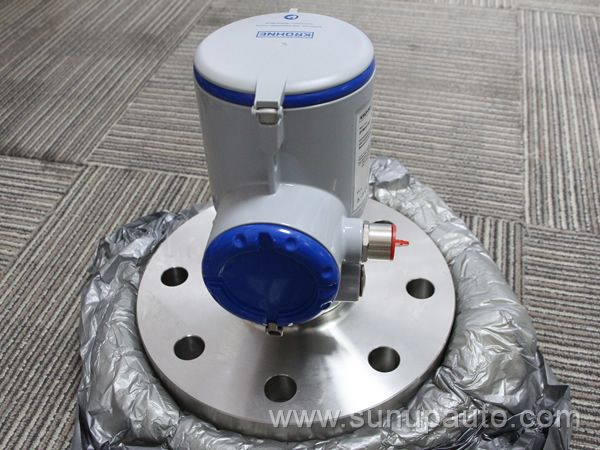

KROHNE OPTIWAVE 7500 C 80 GHz Radar (FMCW) Level Transmitter for liquids in narrow tanks with internal obstructions. DN40; 1.5” PEEK Lens antenna with DN80 flange connection.

The OPTIWAVE 7500 is a 2-wire 80 GHz radar (FMCW) level transmitter for demanding liquid applications involving narrow tanks with long nozzles and internal obstructions like agitators or heating coils. Its very small beam angle and negligible dead zone make this FMCW radar the optimal choice for continuous, non-contact level measurement in both extremely small and very high tanks (up to 100 m / 328 ft). The level transmitter is even able to measure through tank roofs made of non-conductive materials. Its PEEK Lens antenna is insensitive to deposits and well suited for corrosive environments. As the antenna is flush-mounted, there is no intrusion into the tank.

• Large measuring range from the antenna up to 100 m / 328 ft

• Small beam angle due to 80 GHz and process connections starting from ¾¨ thread

• PEEK Lens antenna insensitive to deposits

Target industries:

Chemical & Petrochemical

Environment

Oil & Gas

Power

Target applications:

Level measurement of liquids such as hydrocarbons, LPG, ethylene, corrosion inhibitors, foaming agent, drilling mud, slop oil, solvents, acids, urea, chlorine, resins, paint, ink, lubricant oil, lime milk etc.

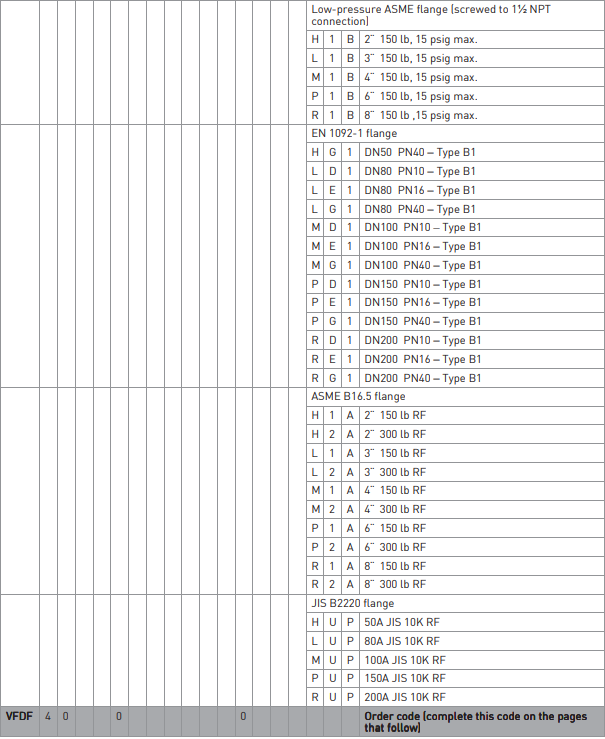

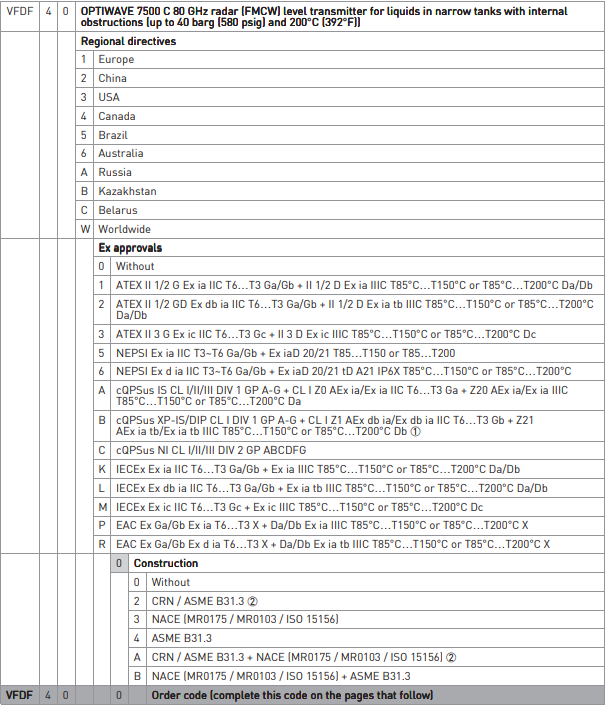

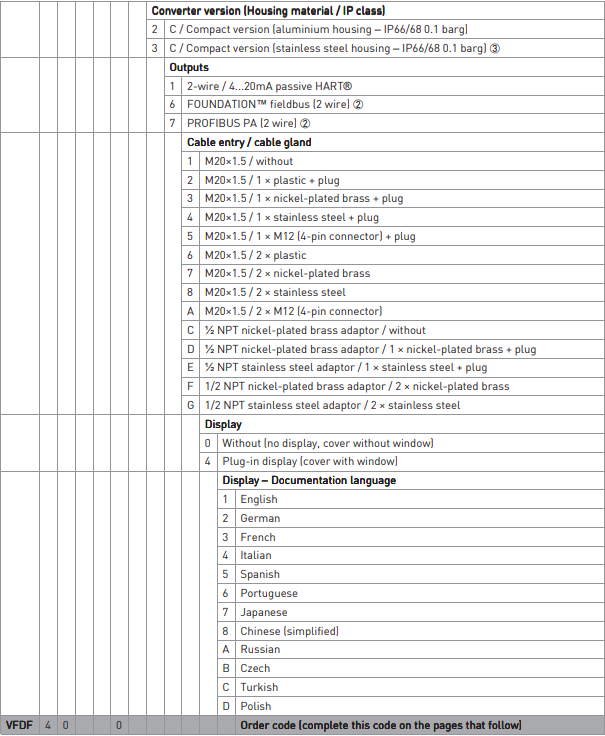

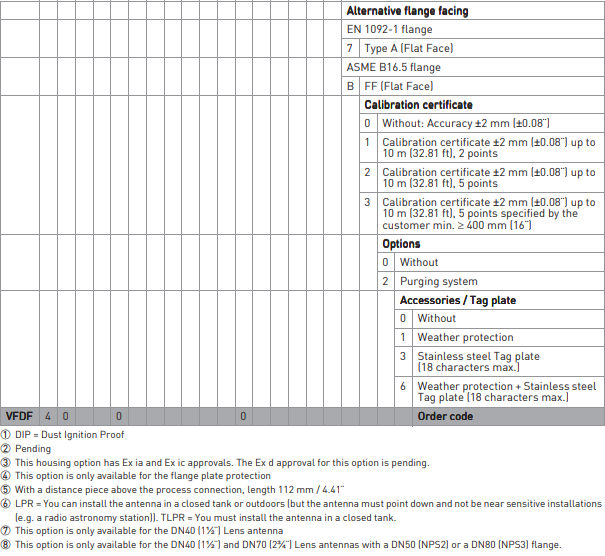

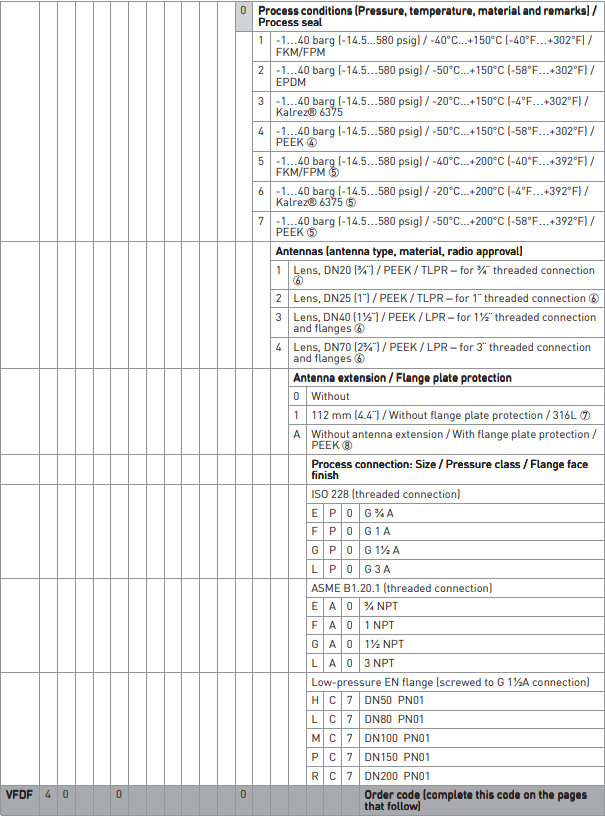

Order code
