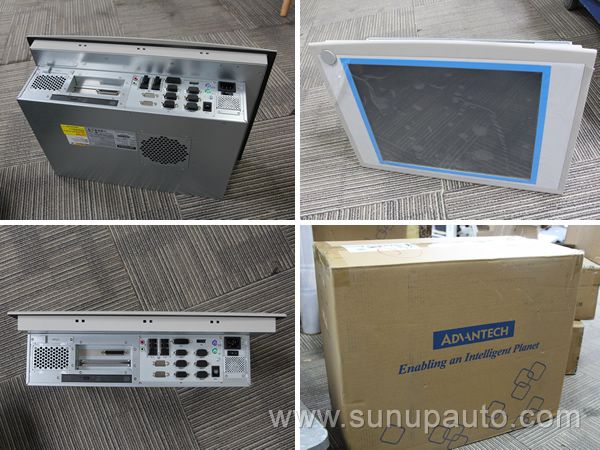

Advantech IPPC-6172A-R2AE 17" SXGA TFT LCD, LED Backlight Core™ i7/i5/i3 Industrial Panel PC.

Features

●  15" XGA/17" SXGA/19" SXGA TFT LCD with touchscreen

●  Supports Intel® Core™ i7/i5/i3 processor with Q87 chipset (up to 3.1GHz )

●  System supports four DIMM sockets support up to 32 GB DDR3 1333/1600 MHz SDRAM

●  Offers multiple expansion slots including two PCI (default), one PCI + one PCIe x4 (optional), two PCIe x1 (in the accessory box)

●  SATA 2.0 or SATA 3.0 HDDs and RAID 0,1 compatibility

●  Front USB access and system reset function

●  Front panel is IP65 compliant

●  Supports Intel AMT 9.0 and Intel vPro competent

●  Supports Microsoft® Windows 7,Windows 8.1 and Windows 10

●   Supports SUSIAccess and Embedded Software APIs

●  Optional Functionality –CFast ,PCI/ PCIe expansion,DVD-ROM

Ordering Information

●   IPPC-6152A-R2AE 15" XGA LED IPPC-61X2-R2 2PCIs w/ TS

●   IPPC-6172A-R2AE 17" SXGA LED IPPC-61X2-R2 2PCIs w/ TS

●   IPPC-6192A-R2AE 19" SXGA LED IPPC-61X2-R2 2PCIs w/ TS

The IPPC-6000A Series is an Industrial Panel PC with front USB access, supports the powerful 4th Gen Intel Core™ i7/i5/i3, high speed DDR3 memory, up to 32 GB, two expansion slots. The processor and chipset combination form the foundation of vPro, Intel’s next generation digital office platform, offering remote out-of-band manageability, improved security, and energy efficient performance. Two SATA hard driver interface with RAID 0,1 support provides data security. Multi function optional –CFast ,PCI/ PCIe expansion,DVD-ROM which offers great flexibility for application specific requirements. Rugged Metal &IP65 Flat-Sealed Front provide excellent durability in harsh environment. With optional mounting accessories, from panels to racks,it can be mounted anywhere.

Accessories

●   98R3615210E IPPC-6152A Rack mount Kit

●   98R3617200E IPPC-6172A Rack mount Kit

●   98R3619200E IPPC-6192A Rack mount Kit

●   989KPH1701E CFast module for IPPC-61X2-R2 Series

●   1702002600 Power Cable US Plug 1.8 M

●   1702002605 Power Cable EU Plug 1.8 M

●   1702031801 Power Cable UK Plug 1.8 M

●   1702031836 Power Cable China/Australia Plug 1.8 M

●   96CB-POWER-B-1.8M1 POWER CORD for China 1.8M

●   989KPH3800E PCIE to PCI + PCIE x4
