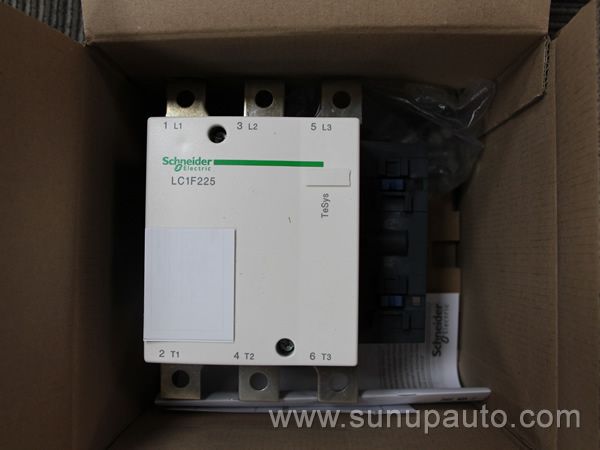

Schneider LC1F225M7 TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 225 A - coil 220 V AC.

TeSys F

Contactors to control motors up to 1000 A (500 kW / 440 V). TeSys F is a range of high current contactors from 115 A to 1000 A designed for AC-3 applications and from 200 A to 2600 A for AC-1 applications. TeSys F series of contactors are specifically designed for the most demanding motor and power switching applications.

● 2 pole (400 A, 500 A & 630 A), 3 pole (115 – 2600 A) & 4 pole (115 A – 780 A) contactors

● Pre-assembled star-delta motor starters (185-375 kW/440V AC), 3 pole AC-3 reversing contactors (115 A – 265 A) & 4 pole AC-1 change-over contactors (200-350 A)

● Separate components and kits available for customer assembly of motor starters, reversing and change-over contactor solutions

● Wide range of AC (40-400 Hz) and DC operating coils

● Terminal connections suitable for connecting bus bars & cables

● Wide range of common accessories to improve flexibility, functionality & safety

● Complemented by Class10/20 LR9F type electronic thermal over-load relays and TeSys GV7-R circuit breaker for motor starter solutions

● Suitable for switching of motors, lighting, heating, capacitors, auto-transformer starting, rotor circuits of slip-ring motors, etc.
